Ⅰ. Parameter
|
Landing Rig(China Made) |
ZJ40L/40J, ZJ40LDB, ZJ40D, ZJ50L, ZJ50LDB, ZJ50D, ZJ50DB, ZJ70L, ZJ70LDB,ZJ70D, ZJ70DB |
|
Truck/Trailer Mounted Rig (China Made: SJ, RG, ZYT) |
ZJ10, ZJ15, ZJ20, ZJ30, ZJ40 |
|
Work over Rig (China Made: SJ, RG, ZYT) |
XJ250, XJ350, XJ450, XJ550, XJ650, XJ750 |

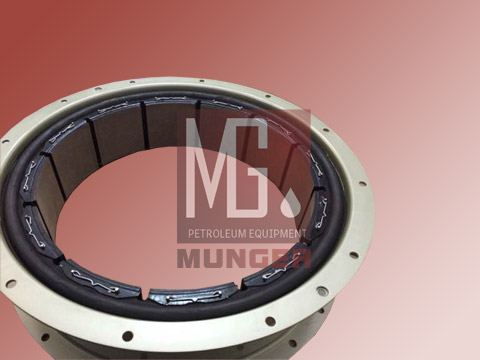

Ⅱ. Types of pneumatic clutch :
|
type |
Rated speed R/min |
Rated torque N.m |
Working Pressure mpa |
Φ1 mm |
B mm |
Connecting size mm |
Intake pipethread M |
||||||
|
Φ2 |
H |
n-Φ3 |
Φ4 |
||||||||||
|
4CB200 |
2000 |
113 |
0.7±0.1 |
99 |
51 |
184.1 |
66 |
8-Φ6 |
170 |
NPT1/8-27 |
|||
|
6CB200 |
1800 |
231 |
150 |
51 |
230 |
72.5 |
8-Φ10 |
254 |
NPT3/8-18 |
||||
|
8CB250 |
485 |
201 |
64 |
284 |
85 |
8-Φ10 |
308 |
||||||
|
10CB300 |
921 |
251 |
76 |
346 |
105 |
12-Φ10 |
371.5 |
||||||
|
12CB250 |
1500 |
302 |
89 |
403 |
112 |
14-Φ10 |
428.6 |
||||||
|
14CB400 |
2230 |
353 |
102 |
454 |
121 |
16-Φ10 |
479.4 |
||||||
|
14CB400(双法兰) |
2230 |
353 |
102 |
498.5 |
137 |
16-Φ10 |
479.4 |
||||||
|
16cb500 |
1550 |
3980 |
403 |
127 |
596.9 |
168 |
8-Φ13 |
571.5 |
|||||
|
18cb500 |
1400 |
4970 |
454 |
127 |
647.7 |
168 |
12-Φ13 |
619.1 |
|||||
|
20cb500 |
1300 |
6060 |
505 |
127 |
698.5 |
168 |
12-Φ13 |
669.9 |
|||||
|
20cb500（双列式） |
1300 |
1210 |
505 |
127 |
698.5 |
346 |
12-Φ13 |
669.9 |
|||||
|
22cb500 |
1800 |
7040 |
555 |
127 |
749.3 |
168 |
12-Φ13 |
720.7 |
|||||
|
24cb500 |
1200 |
8480 |
606 |
127 |
800.1 |
168 |
16-Φ13 |
771.5 |
|||||
|
24cb500 |
1200 |
17000 |
606 |
127 |
800.1 |
346 |
16-Φ13 |
771.5 |
|||||
|
28cb525 |
1000 |
12000 |
706 |
133 |
914.4 |
176 |
16-Φ16 |
882.7 |
|||||
|
32cb525 |
900 |
15500 |
808 |
133 |
1016 |
176 |
18-Φ16 |
984.3 |
NPT1/2-14 |
||||
|
45cb525 |
670 |
29400 |
1137 |
133 |
1362.1 |
176 |
24-Φ19 |
1324 |
NPT3/4-14 |
||||
